MiG-15bis

[Stolz]

21.07.2026 в 21:06, Stolz сказал:

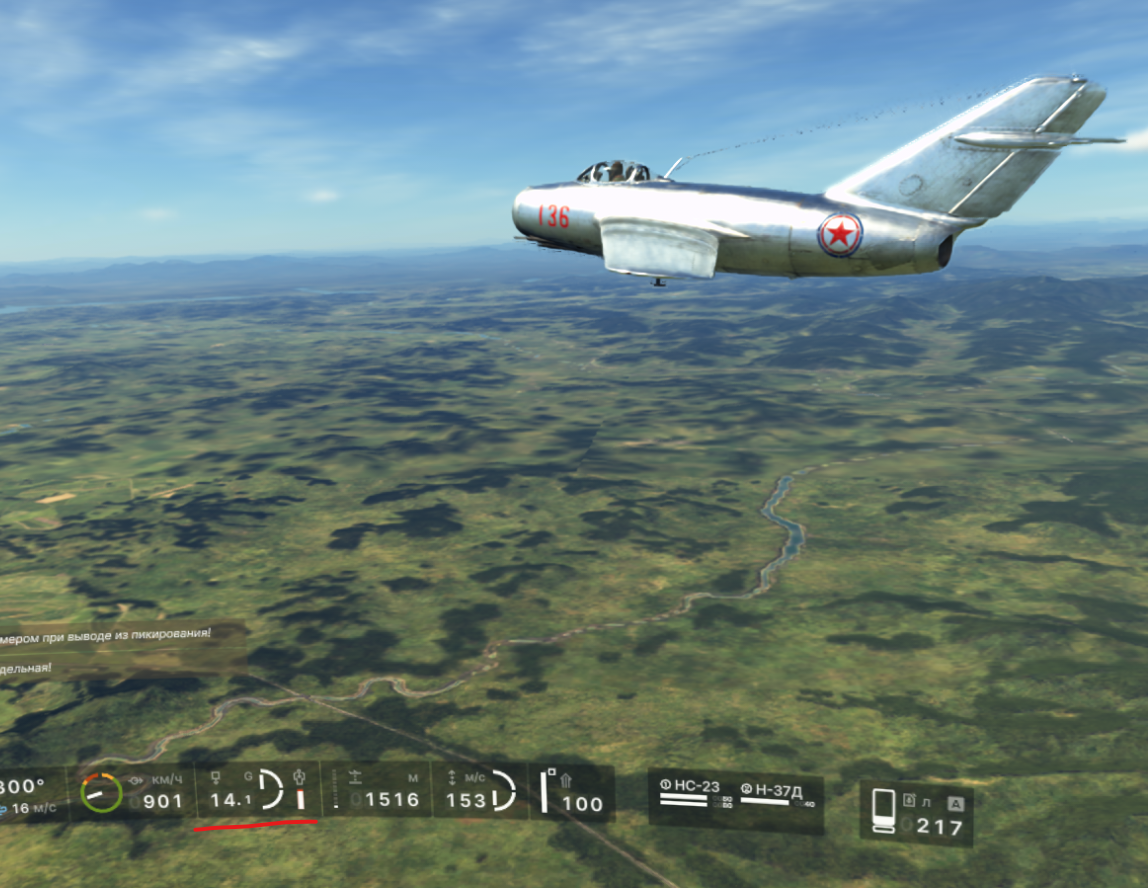

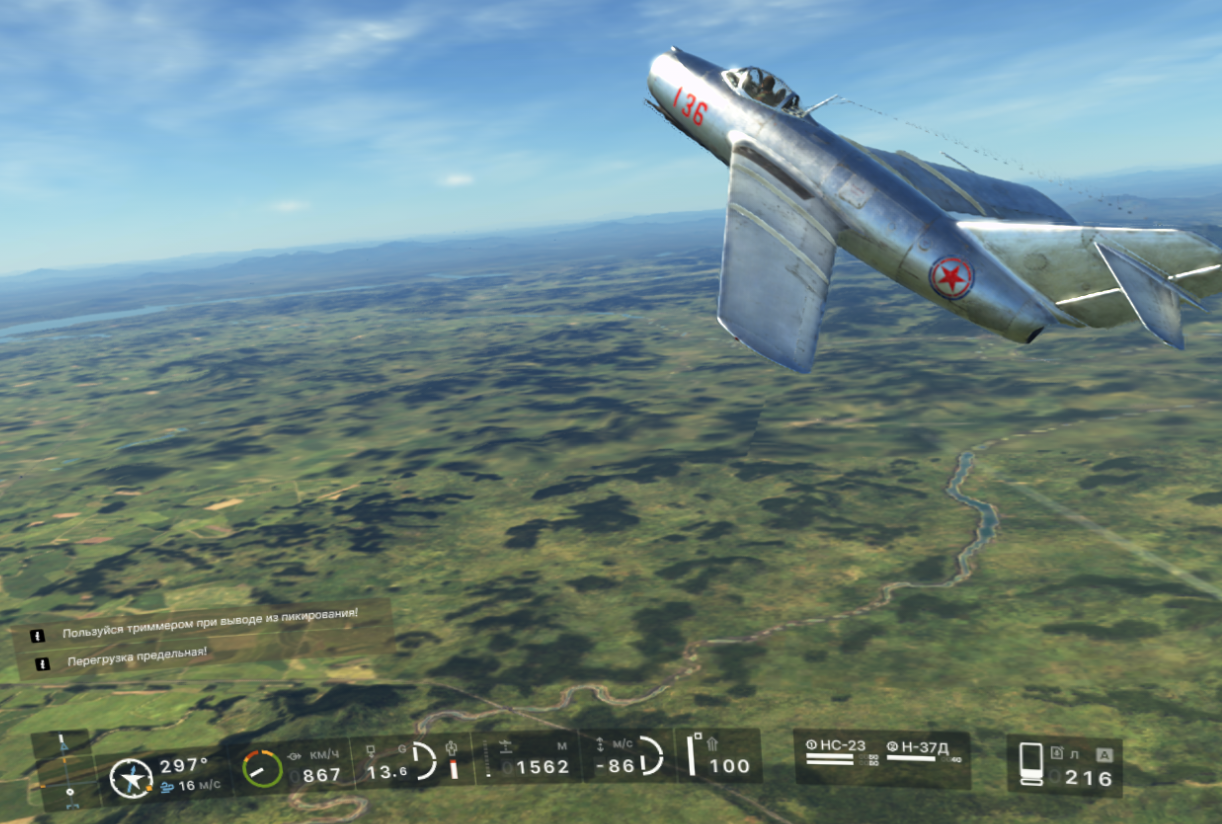

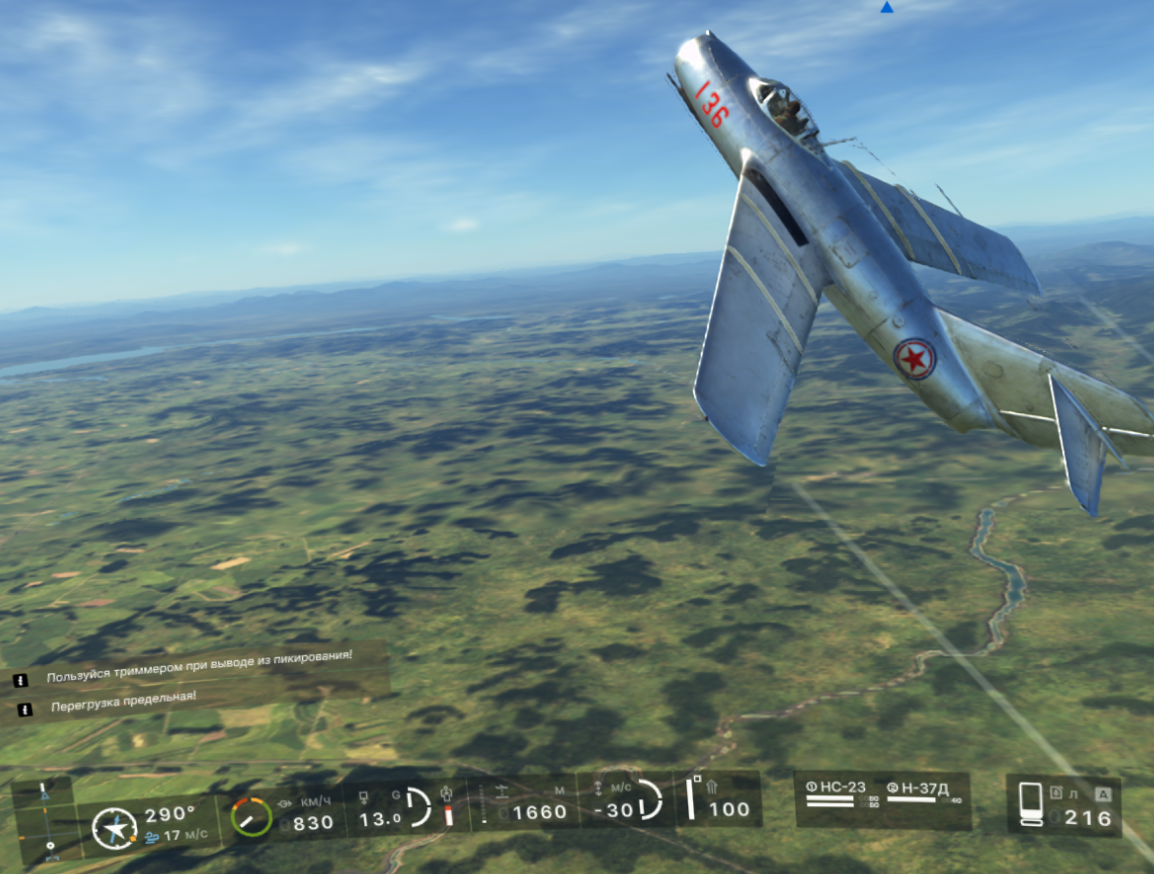

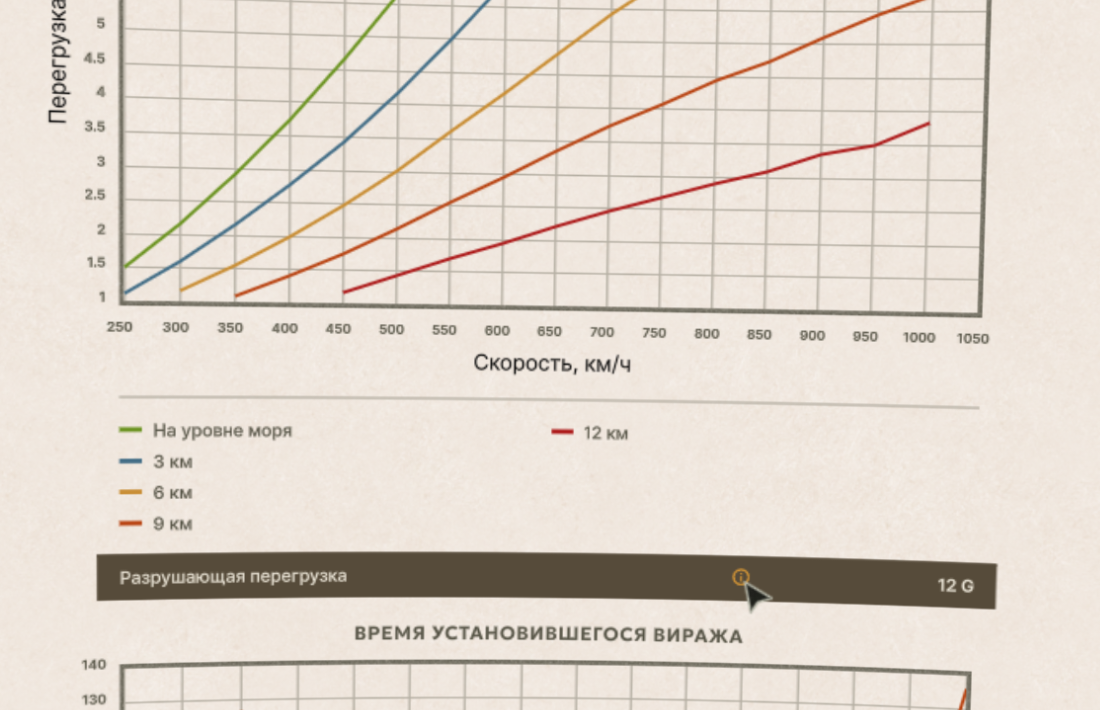

Is this correct behavior if the MiG can withstand overloads above the ultimate destructive limit of 12G for a long time without any problems?

Same behavior after the hotfix — is it correct?

[Kongo]

On 7/4/2026 at 4:24 PM, Gavrick said:

It presented.

I may be wrong, but it seems to me that everyone expects the MiG to have a reverse roll response to aileron stick input. But! In the source above it says — "reverse roll response to RUDDER INPUT ("leg push")."

So in the Mach number range of about 0.85...0.93, the aircraft rolls not in the direction of the pressed pedal, but in the opposite direction. And this effect is modeled in our simulation.

I'll repeat here my comment on the MiG‑15 handling from one of the YouTube videos:

Yes, the "twisting wing" effect does exist. However, it does not necessarily lead to a "reverse roll response" — it reduces the effectiveness of the ailerons. At the dynamic pressures the MiG develops, the reverse reaction to the roll control input does not have time to manifest itself (though... in principle, if you really try, you might get lucky and catch this, but beyond limited airspeed).
Naturally, the effectiveness of ailerons (and other control surfaces) is also affected by high Mach numbers. When the overall Mach number for the aircraft is still below 1 (subsonic), but local shock waves on the wing and tail surfaces are already present, the effectiveness of control surfaces ahead of them decreases. This is modeled.
And yes, there is also the "wing drop" effect — a random rolling tendency due to insufficient structural stiffness and asymmetry. Incidentally, this was dealt with fairly quickly, as reflected in the modification with enlarged speed brakes — it also includes a stiffer wing with additional rigging provisions during assembly, which reduces the wing drop effect.
But! The reverse response does exist. And it is a reverse roll response to rudder input. It manifests in a narrow Mach number range (roughly 0.85...0.93), and occurs because the effective sweep angles of the two wing consoles differ due to sideslip, causing one console to experience a wave drag crisis while the other does not. This leads to a difference in lift and an unexpected roll in the opposite direction.

Once again, briefly:

-Wing twisting exists; it leads to reduced aileron effectiveness, up to a complete lack of response. It depends on speed.

-Wing drop exists; it rolls the aircraft in a random direction with varying intensity on each flight, depending on the specific aircraft and speed.

-Reduced control effectiveness due to shock waves at Mach numbers above critical Mach exists. It depends on Mach number.

-Reverse roll response to rudder input exists; it appears in a narrow Mach number range.




Thank you for taking the time to answer them . I was not aware at the time that each mig spawn had randomly attributed different severity of the wingdrop effect  This in itself is a better approach of implementation than the other sim. I was very pleasantly surprised when Command T shared this.

However i do have one question regarding the effects on the wing drop vs DCS. Would G onset while maneuvering in the Transonics make wingtwisting worse? If i´m not mistaken that is modeled in DCS and just skimming the scientific literature on it, it seems to point in this way.

I think the main issue is that we all feel that the severity of wing drop is too light and we never encountered a situation where we had to strugle in controling the jet, which is in contradiction to the testing reports and other observations

[Kirilius83]

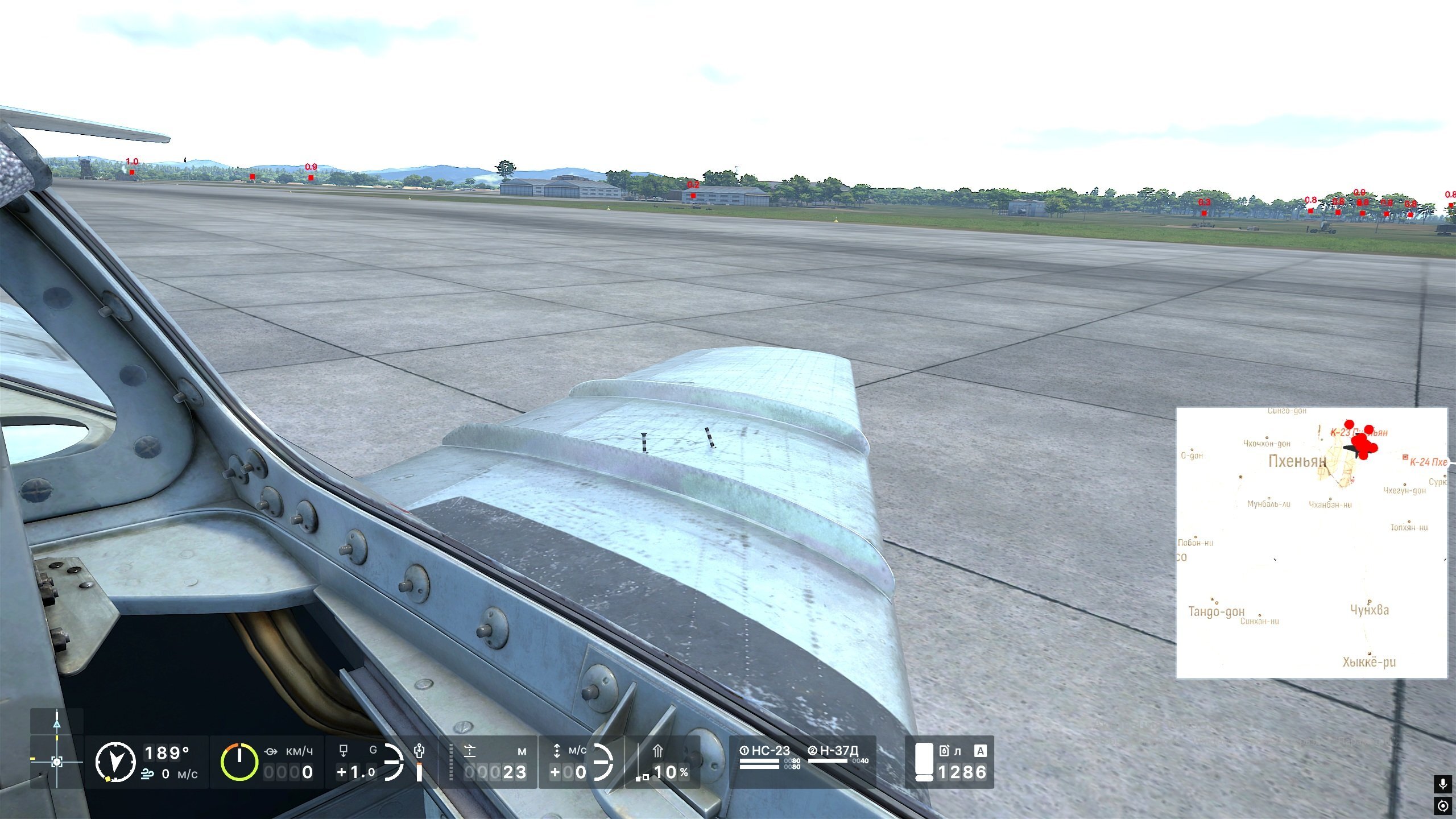

А почему на левом крыле нет выреза во внутреннем аэродинамическом гребне?

Скрытый текст

Этот вырез нужен, что бы нормально видеть солдатик выпуска закрылков, иначе не видно полную уборку закрылков. (помню, в детстве, когда клеил модельку мига долго гадал что это за вырез и не брак ли это литья, но тогда инета то еще не было и негде было найти инфу (а в библиотеках РЛЭ не водилось), много позже вычитал зачем он нужен).

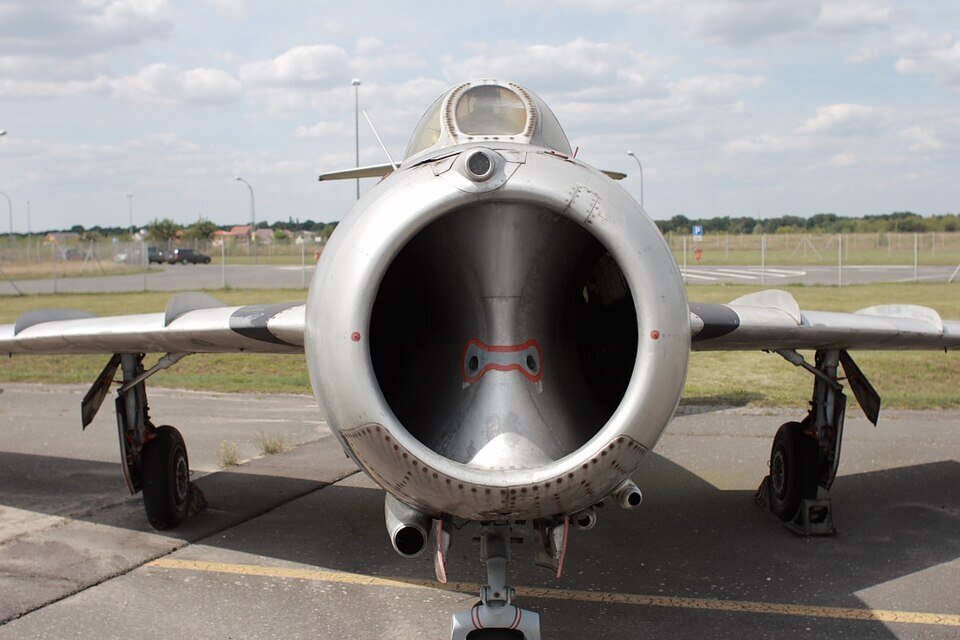

Вот фото реальных мигов:

Скрытый текст

https://i.ytimg.com/vi/keuyuRfahXA/maxresdefault.jpg

https://avatars.mds.yandex.net/i?id=c9d2ed8e5155fcde59f19370b29f5f22_l-5858292-images-thumbs&n=13



[Kirilius83]

Так же, огонь в двигателе горит от холостых до 7000 об/мин, на более высоких оборотах гаснет. По логике должно быть наоборот (хотя вроде тяга появляется в районе 5...6,5 к, но тут не уверен)

В какой-то момент после посадки лампочка "выпусти шасси" продолжала гореть, после взлета и уборки шасси погасла. Но я не отследил когда она загорелась и что я делал с закрылками перед заходом. Сама посадка с закрылками в посадочное была.



[Gavrick]

10 часов назад, Kirilius83 сказал:

Так же, огонь в двигателе горит от холостых до 7000 об/мин, на более высоких оборотах гаснет. По логике должно быть наоборот (хотя вроде тяга появляется в районе 5...6,5 к, но тут не уверен)

В доступе есть не то, чтоб много видео с камеры, которая смотри в сопло работающего ТРД. Но на тех, что удалось найти (и для ВК-1 тоже) пламени на больших оборотах не видно. А вот на малом газу как раз таки оно заметно.

[[I.B.]-=ViRUS=-]

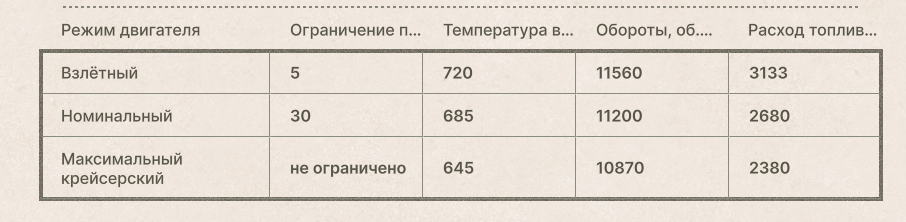

Временные ограничения режимов по температуре, или по оборотам? Заметил, что частенько температура газов ниже на указанных режимах, и на что ориентироваться в таком случае?

[Lyohin]

02.08.2026 в 17:38, Kirilius83 сказал:

А почему на левом крыле нет выреза во внутреннем аэродинамическом гребне?

Тоже обратил внимание, оказывается, не у всех Мигов делали этот вырез (например не делали на новосибирском заводе).

02.08.2026 в 17:46, Kirilius83 сказал:

В какой-то момент после посадки лампочка "выпусти шасси" продолжала гореть, после взлета и уборки шасси погасла. Но я не отследил когда она загорелась и что я делал с закрылками перед заходом.

Эта лампа должна загораться после выпуска закрылков в посадочное, и гаснуть немедленно после выпуска шасси. В игре пока не исправлено.



Edited August 4 by Lyohin

[86thFG_theRedPanda]

On 7/27/2026 at 5:22 PM, JendaJND said:

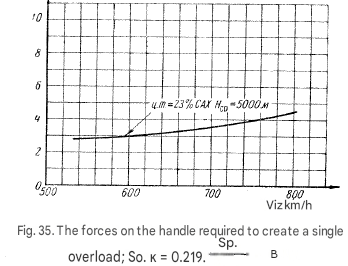

They are not. At 800km/h at 5000 meters, you need approx 4,5 kilos of force per 1G of overload.
13Gs would be nearly 60 kilos of force needed based on trim, i assume its trimmed for level flight in this case.



On 7/26/2026 at 11:30 PM, 86thFG_theRedPanda said:

Is there a technical reason why the mig is able to pull 13ish G load at high speed 800~900kmh? Afaik only the ailerons are boosted unlike the Sabre. Are the stick forces on the mig very light by design?



On 7/31/2026 at 12:33 PM, Stolz said:

Same behavior after the hotfix — is it correct?

apparently 15G is possible at around 950 kmh, how is the pilot supposed to pull this much at this high speed?

This is before release yesterday but I didnt see any changes related to it in patch notes.

Need to test more

Edited August 5 by 86thFG_theRedPanda

[JendaJND]

3 hours ago, 86thFG_theRedPanda said:





apparently 15G is possible at around 950 kmh, how is the pilot supposed to pull this much at this high speed?

This is before release yesterday but I didnt see any changes related to it in patch notes.

Need to test more

I think trim plays a massive role here. In case of stick force charts, they are often showing force in combination with trim for level flight. If you trim for level flight at 950, then that pilot is terminator.

But he might aswell be anyway because there is no way in hell human being aint blacking out in such long pull and these Gs especially without gsuit. Nor there is any chance mig15 is surviving 15Gs of overload. Modern built F-15 was all bent up and wings scrapped after it survived brief moment at 15Gs.

Edited August 5 by JendaJND

[Stolz]

6 часов назад, 86thFG_theRedPanda сказал:





apparently 15G is possible at around 950 kmh, how is the pilot supposed to pull this much at this high speed?

This is before release yesterday but I didnt see any changes related to it in patch notes.

Need to test more

Obviously, the MiG should lose its wings at around 12G, in accordance with the game’s data on destructive G-load.

[TotenDead]

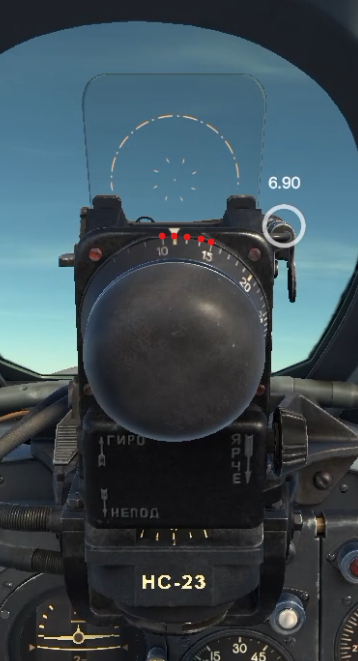

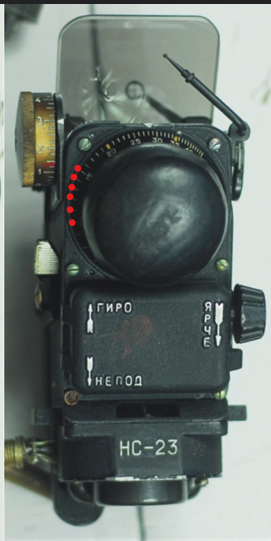

Одного деления не хватает. Из-за этого не очень понятно какое значение выставляешь

[Banzai]

20 hours ago, Stolz said:

Obviously, the MiG should lose its wings at around 12G, in accordance with the game’s data on destructive G-load.

Mig-15G 😉😂

[Andrey78]

Нашёл несколько багов:

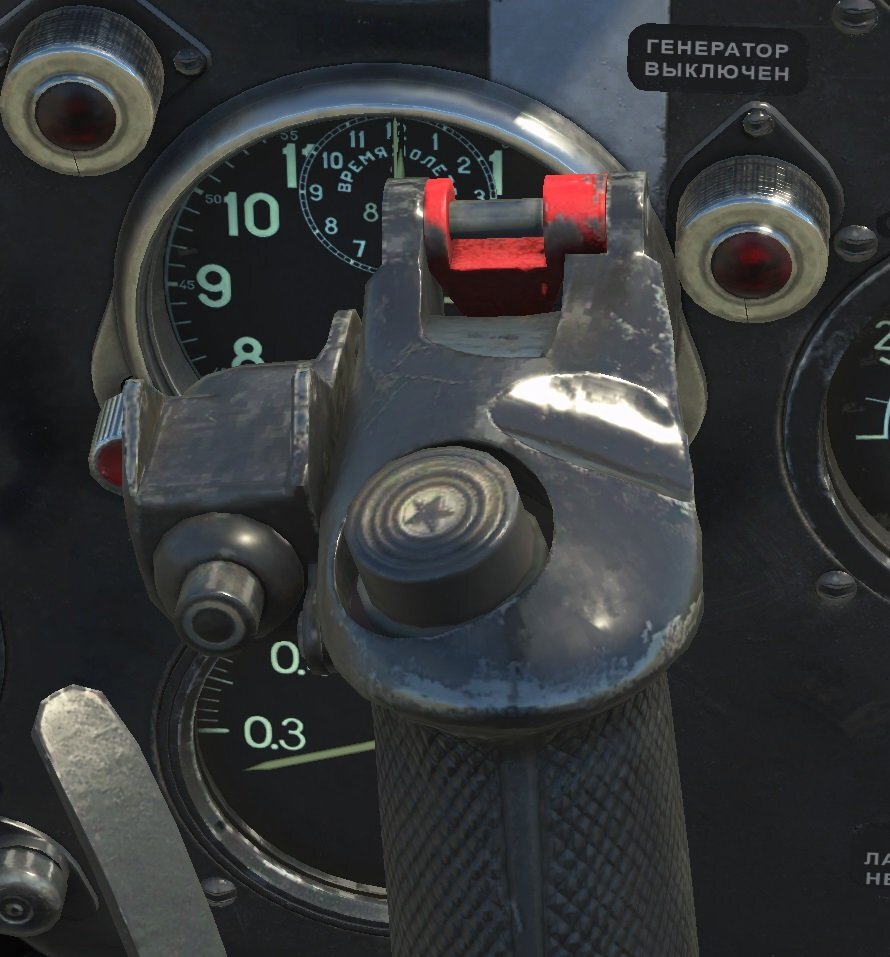

1) при стрельбе из пушек и 23 мм и 37 мм - на РУС нажимается одна и та же верхняя кнопка,
а должны быть разные: кнопка - 37 мм, курок - 23 мм (на Як-9П работает и курок и кнопка на разное вооружение!)

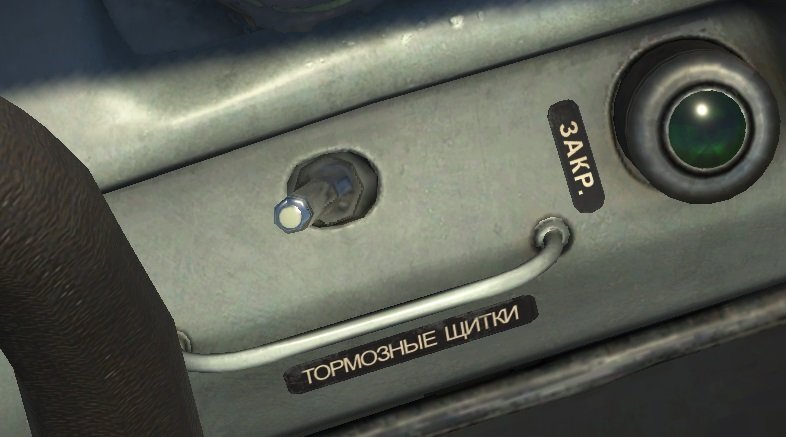

2) анимация переключателя воздушного тормоза работает только по команде "Воздушные тормоза: выпуск/уборка" (B)
есть давать отдельные команды "Воздушные тормоза: выпуск" (L Ctrl + B) и "Воздушные тормоза: уборка" (LShift + B),
то переключателя в кабине остается в исходном положении и не двигается! (хотя зеленая лампочка-индикатор работает правильно)

[Azdack]

I identified two gyros in the cockpit of the Mig-15 bis. The DGMK-3 and the Ki-M compass.
If I activate the HUD that shows my heading, I notice that the heading shown in the DGMK-3 does not match the one shown by the HUD. Is there any adjustment to be made so that the two compasses show the same heading?
On the other hand, the KI-M compass appears in the cockpit of the MIG 15 only in the missions configured in the mission editor. We don’t see it in career mode missions. I would like to be able to navigate with the MIG-15 bis without displaying the HUD. Any advice? Thank you.

[Mrpink7]

Hi I believe the MIG is equipped with a engine fire suppression system, is it modelled and is it possible to bind this ?

[Bert_Foster]

How do you get the MIG15 gunsight into its Gyro mode ? The Mode select keypress doesn't appear to do anything.

[Husar]

1 minute ago, Bert_Foster said:

How do you get the MIG15 gunsight into its Gyro mode ? The Mode select keypress doesn't appear to do anything.

Try uncage .
