Looking for help making Bombing Charts

[Plev]

Hey folks, looking for help with a project. I would like to make charts with gunsight reticle depressions for various speeds and dive angles for existing aircraft in game. I plan to do this using existing reference material and in combination with the bombing aim assist tool in game to figure out what depressions work for what flight profiles.



if anyone is interested in helping, hop in my discord and let me know. https://discord.gg/KRwKV5QmZn

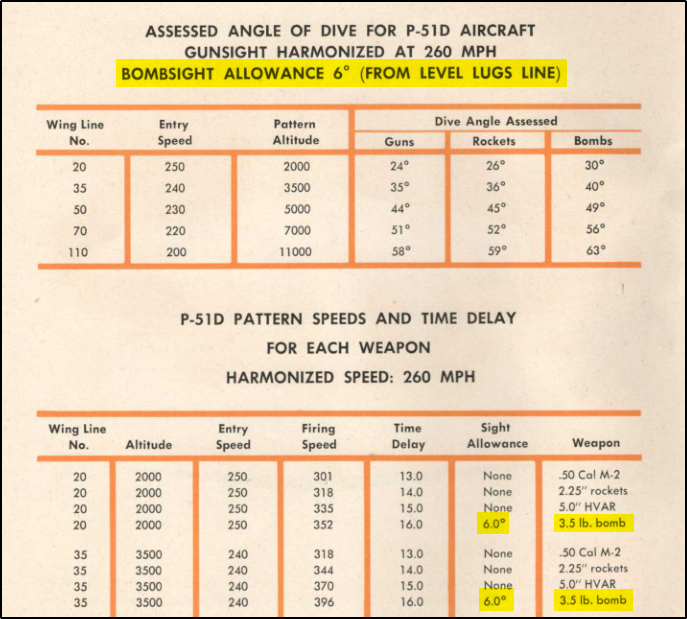

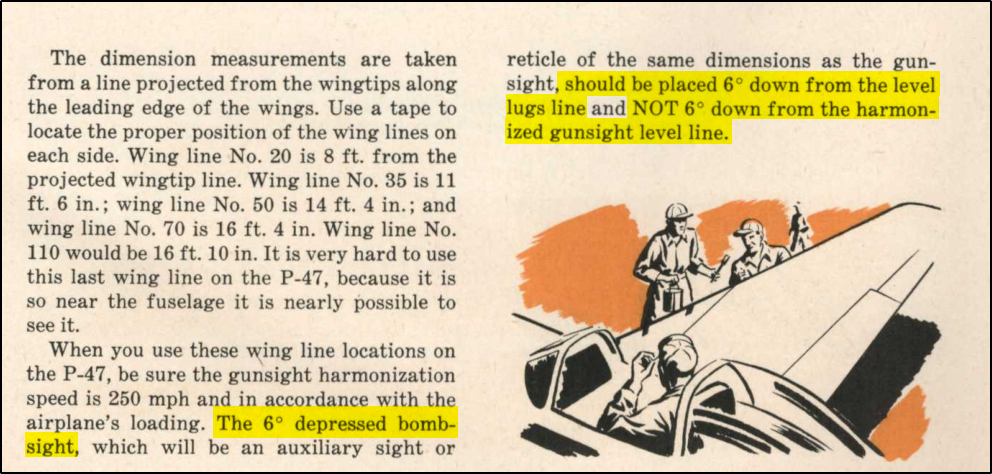

So far, I found this regarding the F-51D bomb delivery methods. I will continue to post resources regarding this here

[Plev]

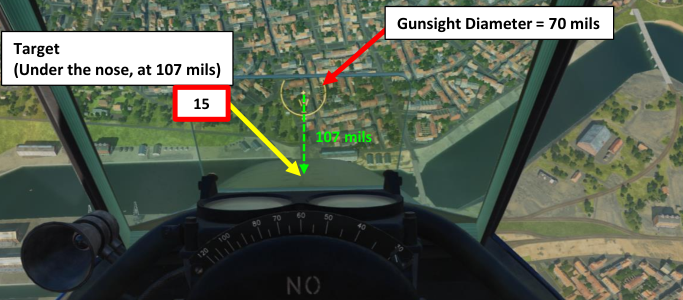

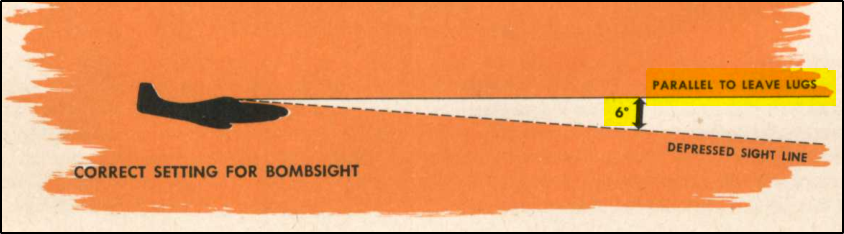

Regarding the lugs line: 107 miles of depression corresponds to 6 degrees from the gunsight level line.

[Plev]

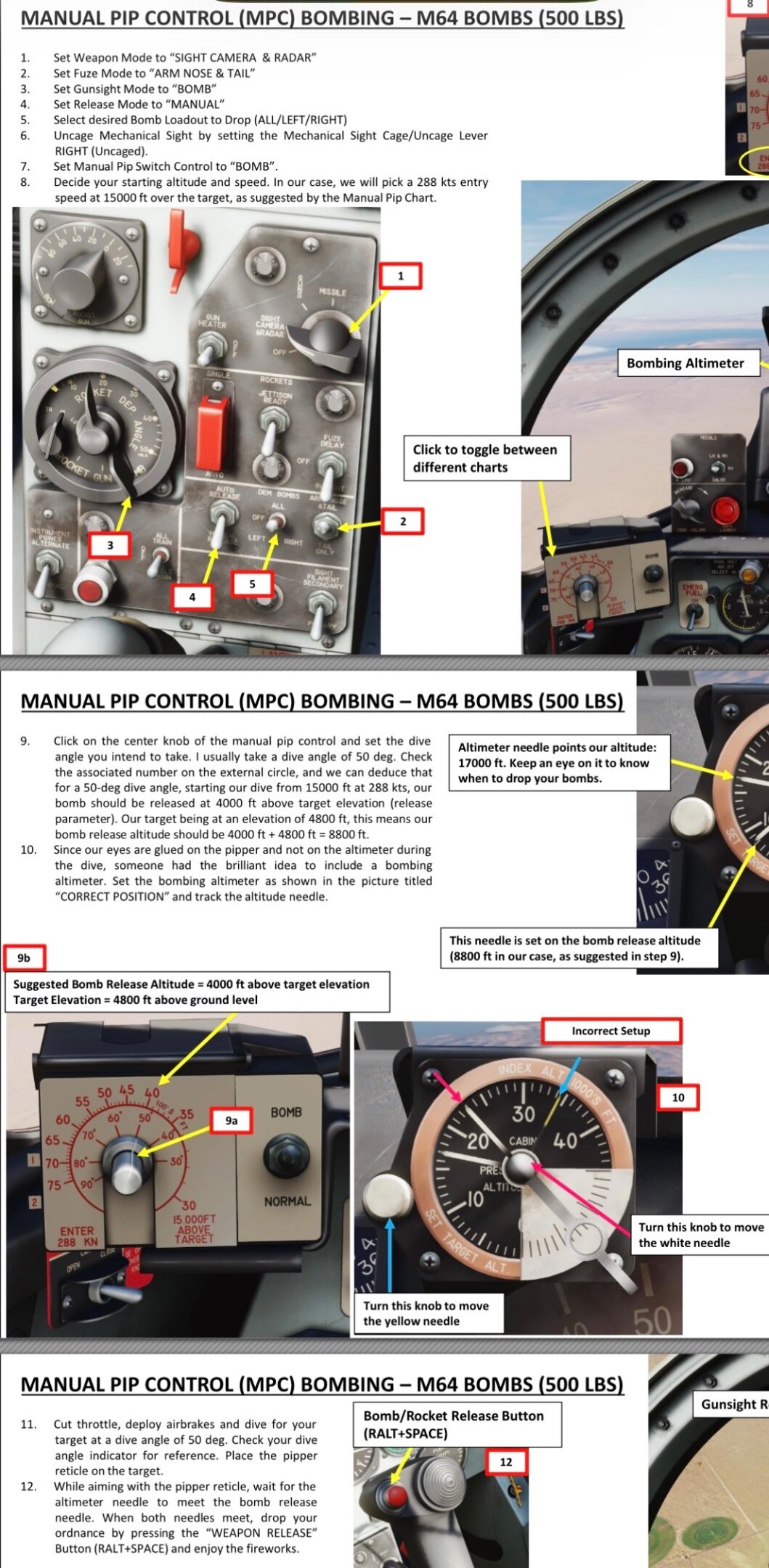

Here is a reference for dive bombing in the F-86F in DCS from Chucks Guide. I am unsure if this is accurate for our F-86A5 in IL-2

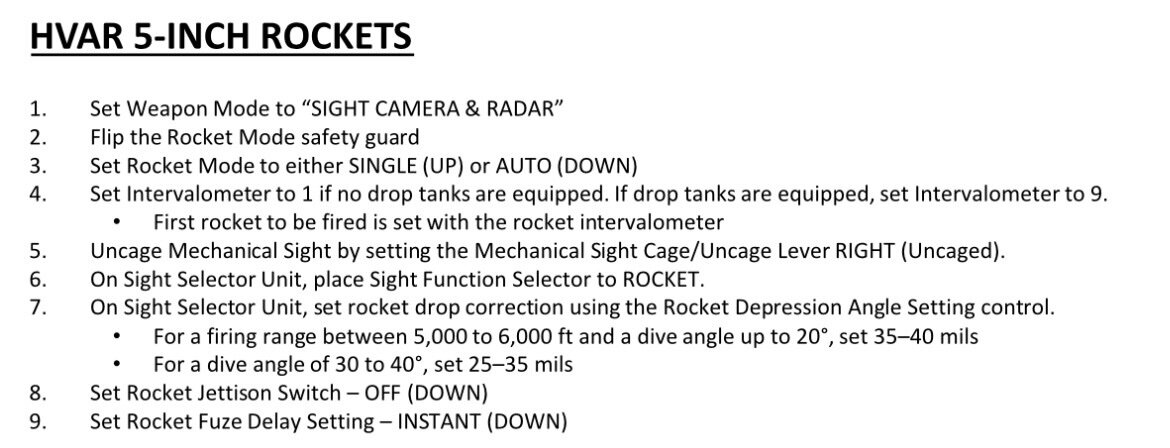

Here is a reference for HVAR rocket delivery in the F-86F for DCS, unsure if it’s accurate for the F-86A5
