Map extension

[Deacon352nd]

A couple of weeks ago kraut1 and I were discussing how to extend the map so that I could attempt to make a new airfield at Bodney, England for my group the 352nd FG. He sent me a mod to try and it worked fairly well so that I was able to make a new airfield from a copy of actual blueprints of the WWII airfield used by the 352nd. Unfortunately I couldn’t put it in the correct geographic location due to the low textured area it would belong. But it was fine.
Then I got the idea to extend the map a couple of hundred km and modified kraut1’s mod and was able extend it east of Amsterdam. It now allows me to start AI bombers in these areas and head west for the 352nd human pilots to rendezvous and also have these bombers be attacked by enemy planes enroute to the rendezvous.
The problem now is that when trying to spawn in, the map displays any airfields I’ve selected to have spawnable  planes no where near where they should be geographically. In fact Bodney is now located mid-Channel. If you select them, you are in the correct airfields and on the ground as normal and you can fly in any direction and have all the correct textures below you. It’s just that the map overlays the actual textures incorrectly. The spawn points, cities, rivers, roads, mountains, hills, and everything is correct, just the map showing them is misplaced.
In fact if you reach the border limit of my extension, you will be turned around in your plane as you would in the vanilla version of the sim.
Any suggestions for correction of the map problem?

[kraut1]

Hi,

I made a test, not successfull, sorry , and now my time is exhausted, I have to start to work😁:

I assumed the issue was caused because the lables are outside of the area of the existing mapstiles.

My test:

ONLY the summer map changed:

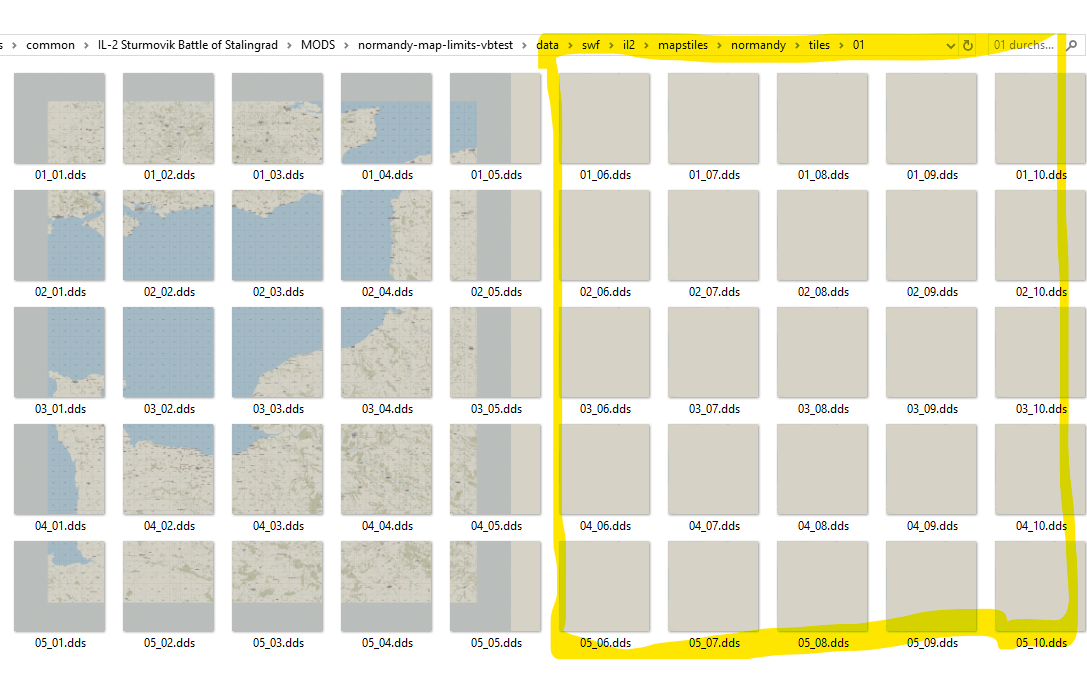

Extension only to east to reduce the number of new (dummy) mapstiles, only 1 detail level to reduce the number of dummy mapstiles.:

For test only 1 folder with mapstiles ("level")

Dummy mapstiles:

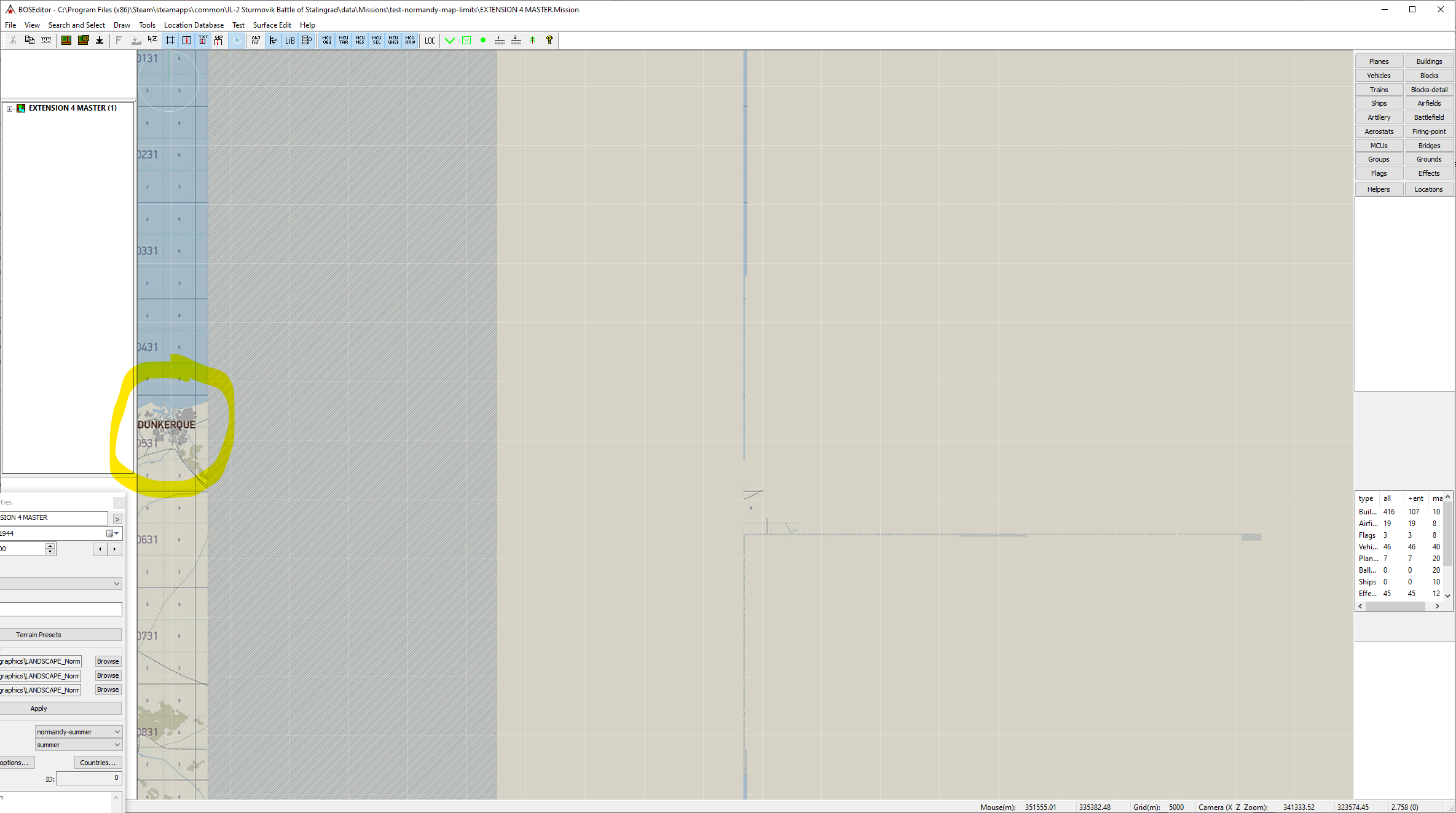

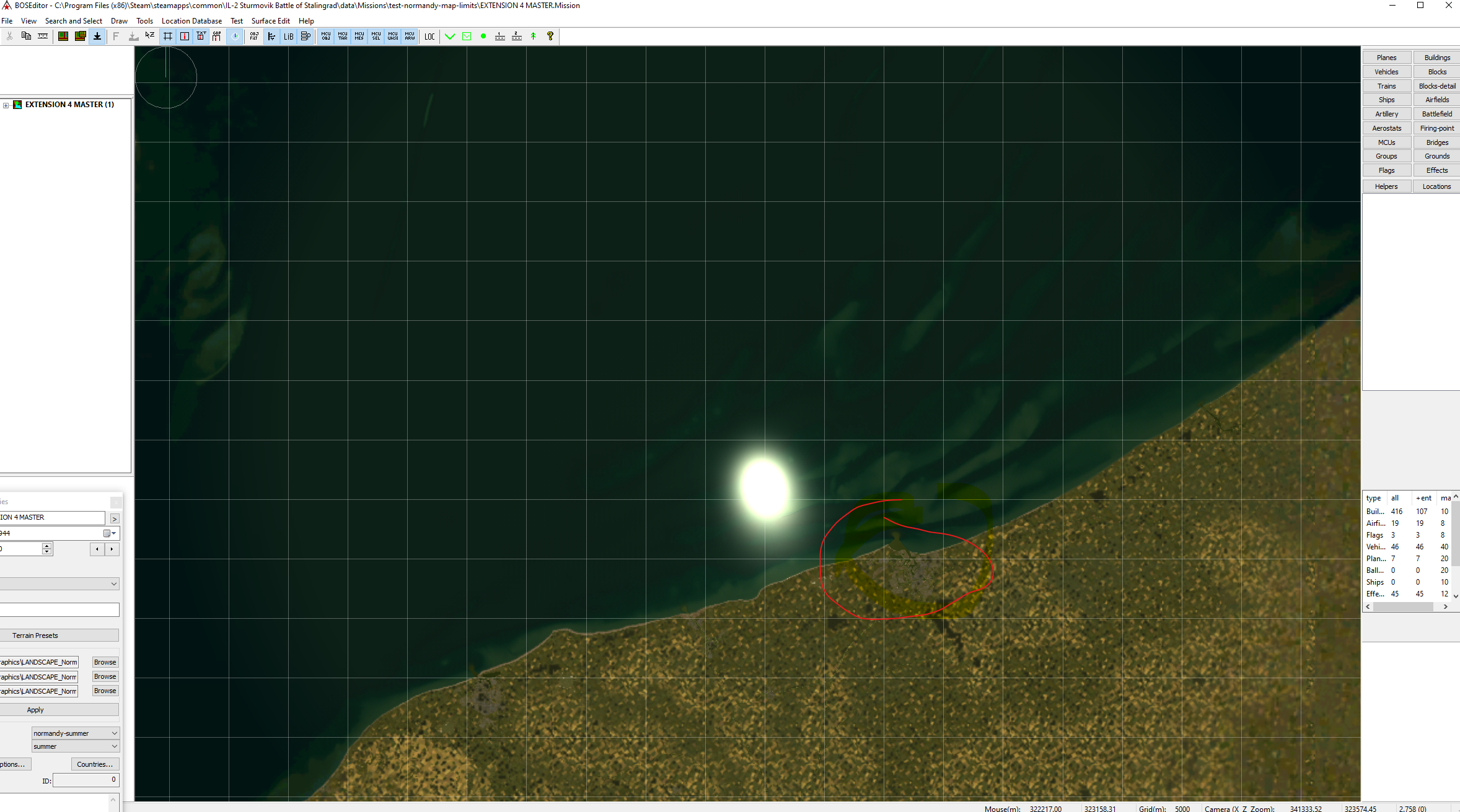

But with this mod there was still a misalignment deviation between gui map and terrain / see Dunkirchen

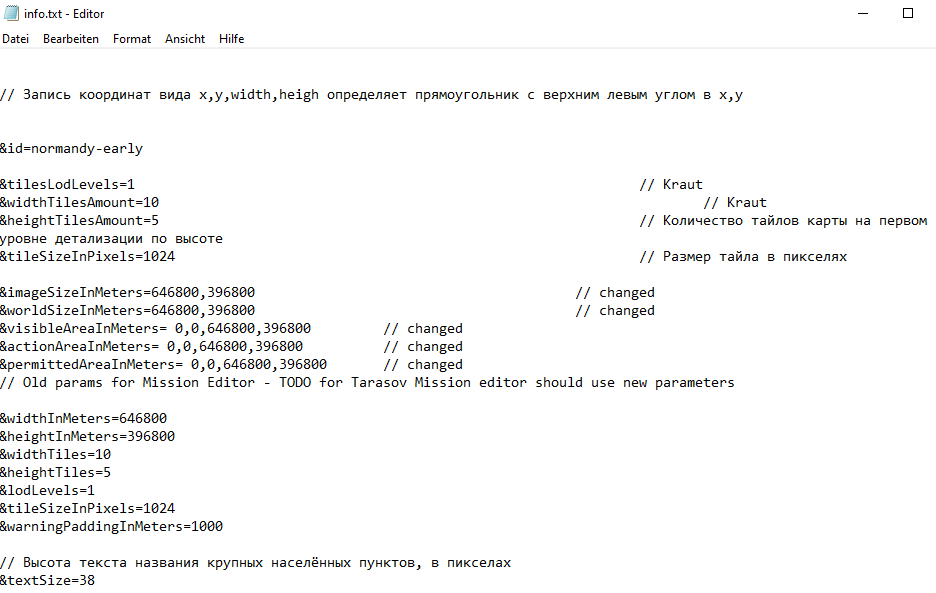

My last idea: there are some origins defined in the settings files, maybe you modify them to align both views...

HEre the link to the test with the additional mapstiles:

https://www.mediafire.com/file/eh9hawvx1os6dkn/normandy-map-limits-vbtest.zip/file

I wish you much success!🙂

Edited August 2 by kraut1

[Deacon352nd]

I’ve made a number of missions with this mod in which I have added a historical 352ndFG base which should be placed where Bodney, England should be  but due to structure and limitation of this mod it needed to be placed in a different geographical place south of the actual location Unfortunately due to differences in the gui map and the terrain, which kraut1 pointed out, the base shows up as if it were in the middle of the Channel. But when you spawn in and look around, you are on land in the correct position of placement from the ME.
Also since the gui map is incorrect all headings to any city or location must be changed to what it is within the ME and not the gui map. Once you get accustomed to this change the missions fly perfectly. I’ve made missions in which returning allied bombers located near Amsterdam or Antwerp or Brussels are met by enemy fighters while awaiting allied fighter escorts tasked withdrawal coverage. Now while there no city buildings below the action which is taking place at 23-27 thousand feet, you really aren’t interested in those buildings anyway since you are too involved with locating and protecting the bombers. So you don’t look down anyway.
There a few other limitations which I quickly uncovered while testing these missions but nothing that a mission maker with any level of experience can’t overcome quickly.
if anyone is interested in this mod of the Normandy map, just post in this topic and I’ll send the mod and a example mission.
Forgot to ask, if anyone knows how to coordinate the gui map and terrain please respond so we can overcome this current confusing situation.

Edited August 28 by Deacon352nd
