eszyman Posted June 1 Posted June 1 (edited) Can anyone help me find drawings on the Mig-15 throttle quadrant? There seems to be very limited info available I'm starting to get the impression that I will need to re-create this pretty soon for use as a 3d printed flight control... Edited June 17 by eszyman

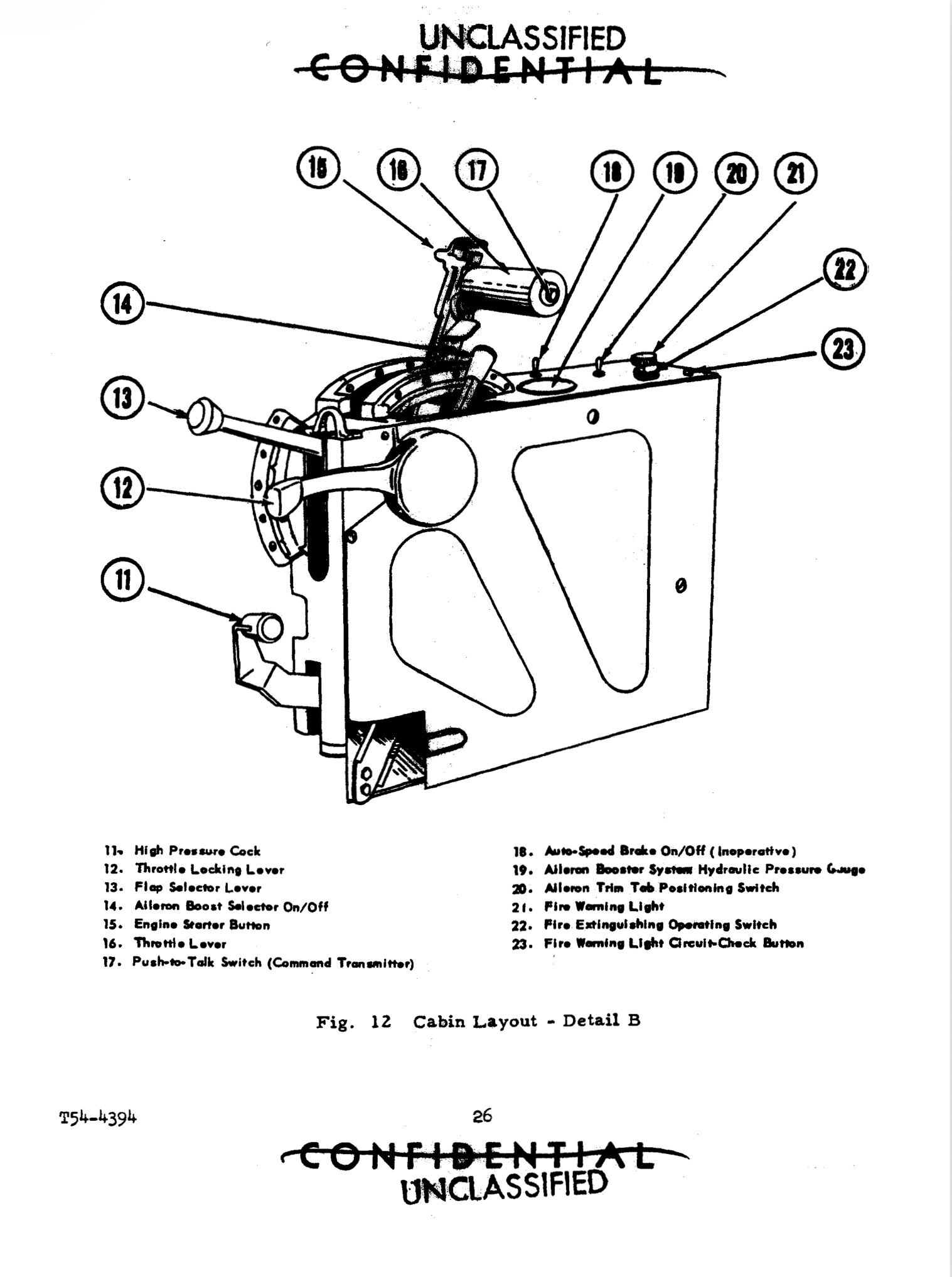

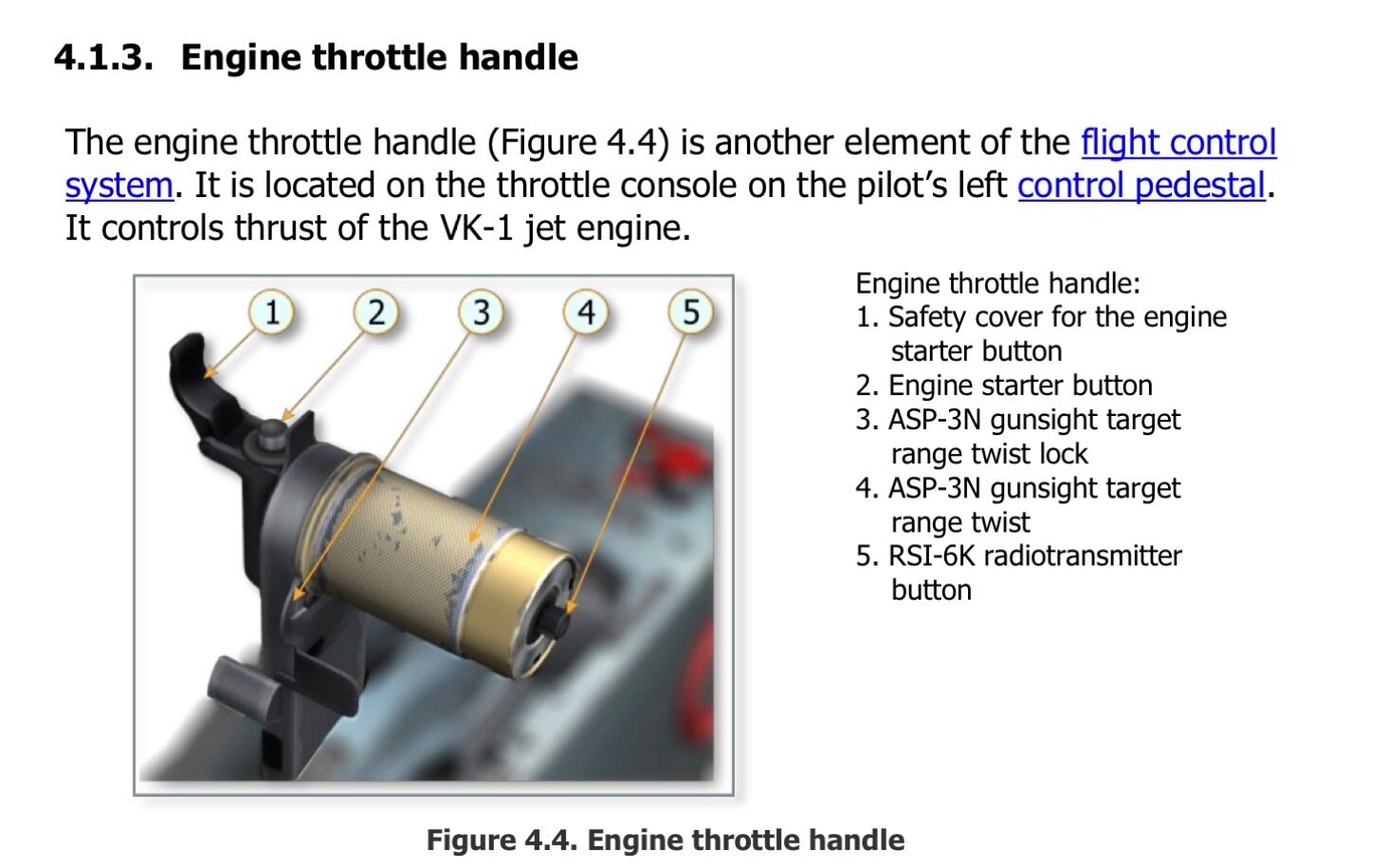

Jaegermeister Posted June 2 Posted June 2 2 1 1 Ryzen 7 7800X3D l 32GB DDR5-6000 l RX 7900 XTX 24GB l HP Reverb G2
eszyman Posted June 4 Author Posted June 4 (edited) Thank you! Do we have any dimensions on any part of the throttle? That cylinder would be a great reference point. More reference: https://free3d.com/3d-model/mig-15-cockpit-6247.html?dd_referrer=https%3A%2F%2Fwww.google.com%2F Edited June 4 by eszyman
eszyman Posted June 5 Author Posted June 5 Estimated rotation of the range rheostat 146.5° limited by mechanical stops to 180° Reference ASP-3N document: https://www.cia.gov/readingroom/docs/CIA-RDP80T00246A056900030001-7.pdf

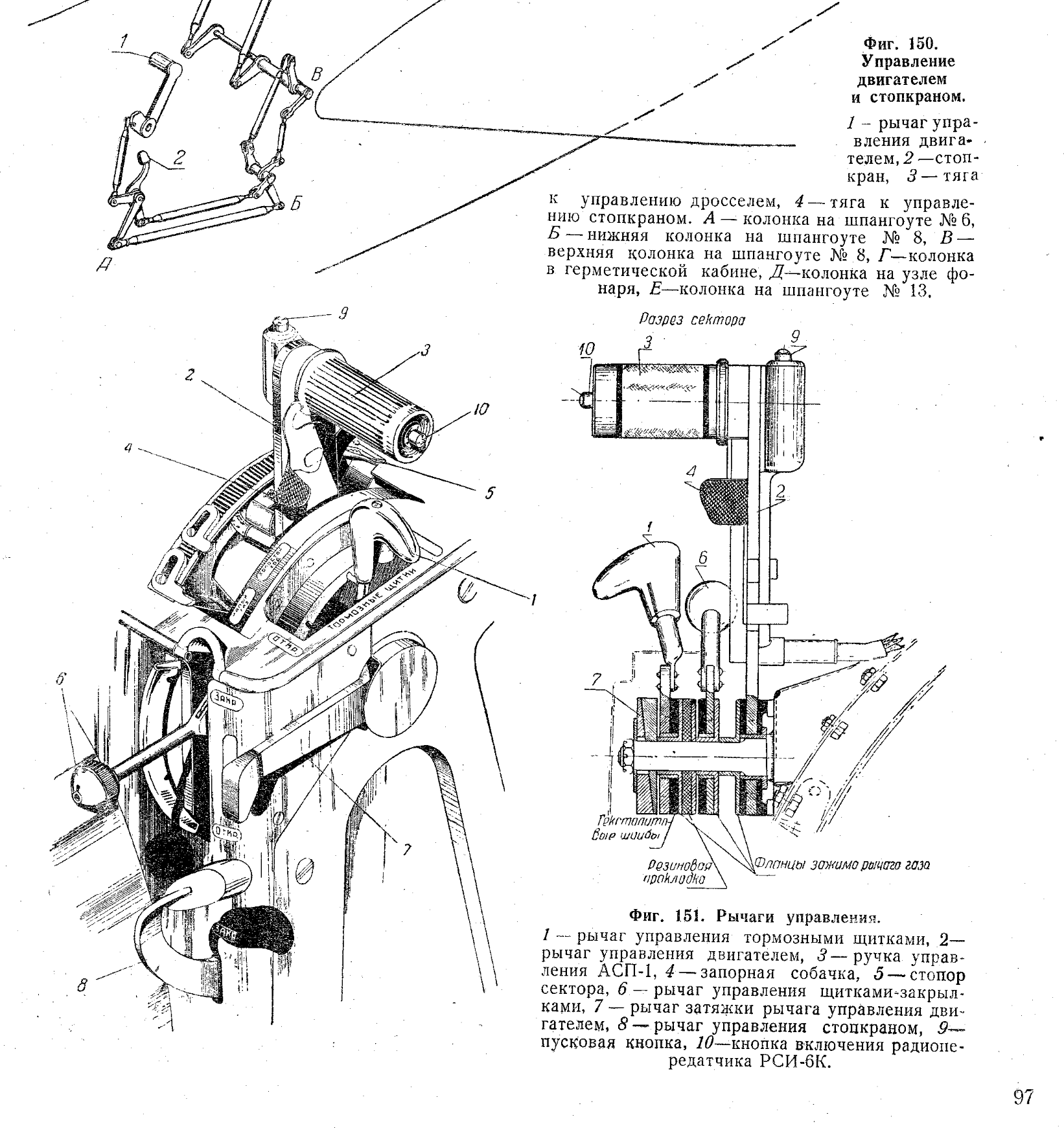

eszyman Posted June 8 Author Posted June 8 From what I can tell, #2 Engine control lever / Throttle (рычаг управления двигателем) is made from 6mm Aluminum which is a good reference to know for scale...
eszyman Posted June 11 Author Posted June 11 Still researching... someone has apparently beat me to it, dimensions seem reasonable, but I would like more features... https://www.thingiverse.com/thing:5656834/files

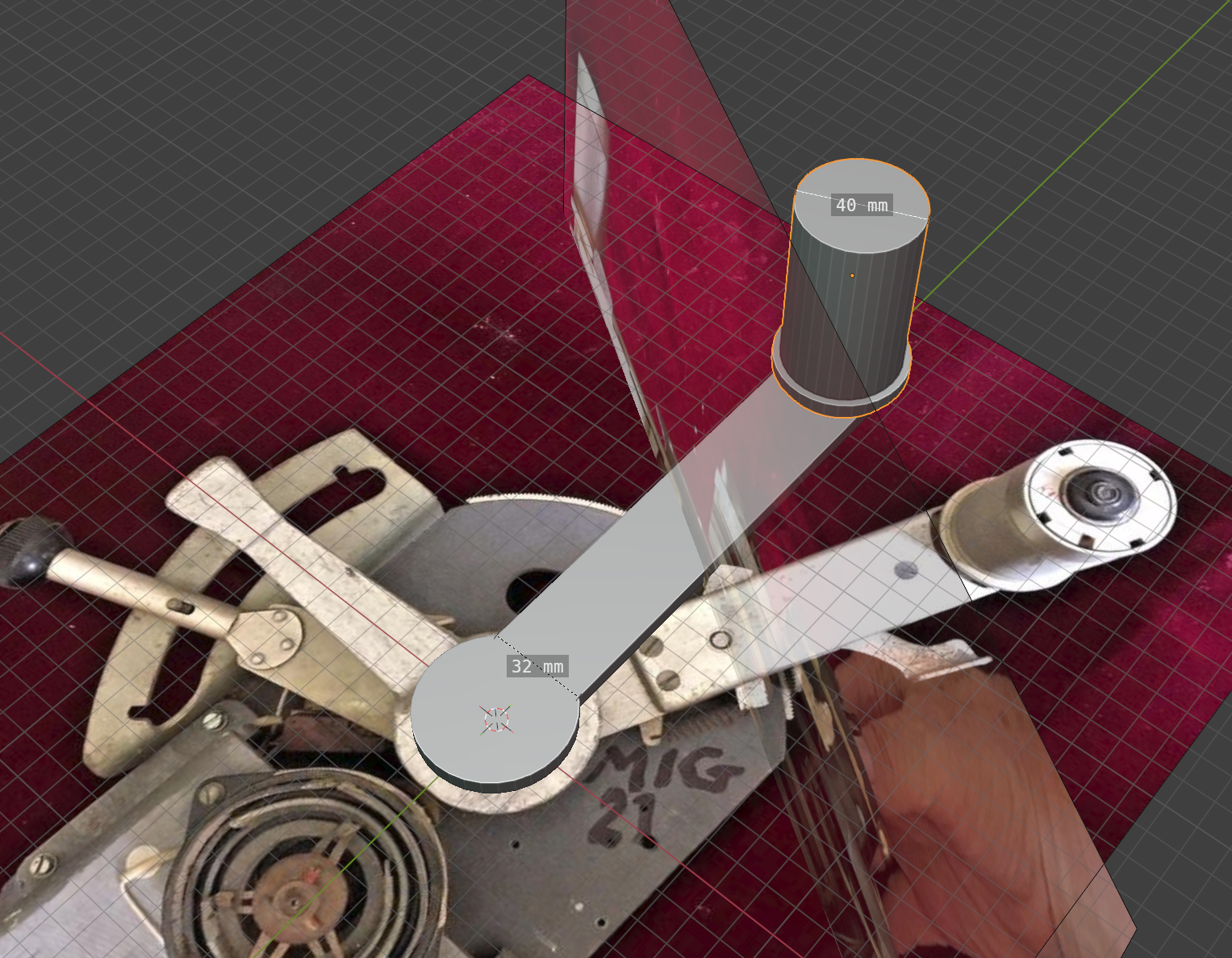

eszyman Posted June 11 Author Posted June 11 (edited) ?? РУД Диаметр ?? It would be fantastic if someone could confirm this dimension of the grip. ..And yes I am aware that this is labeled MIG 21, but as far as I can tell this is actually from a MiG-15. Not sure why these kinds of pictures are so rare! Edited June 11 by eszyman

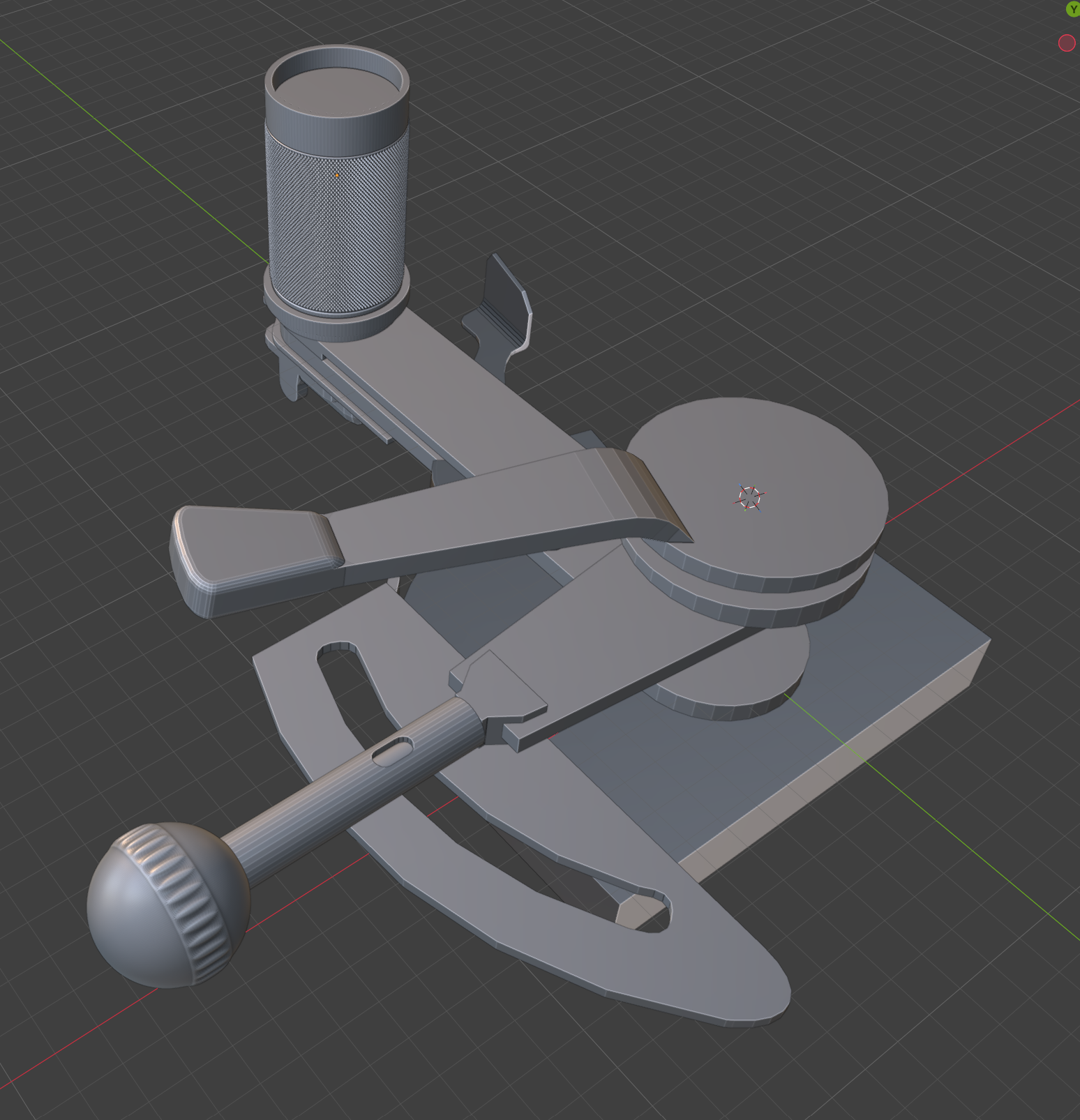

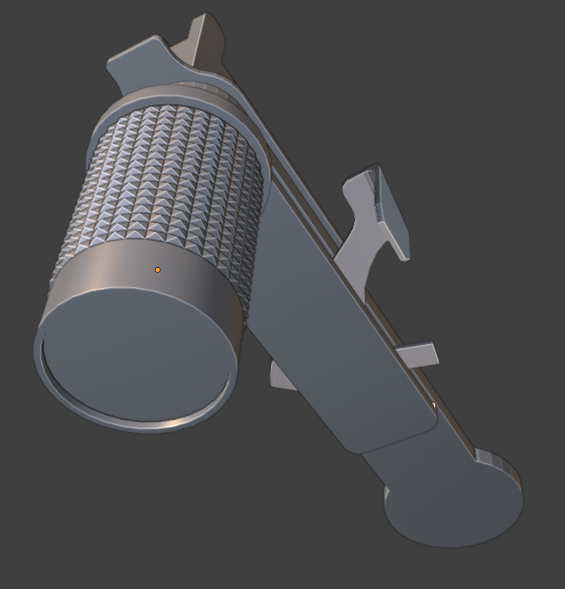

eszyman Posted June 21 Author Posted June 21 Current WIP, still looking for the dimension of the actual grip, but I'm confident that I am close, also I'm not sure abut the final knurl pattern, this will depend highly on the print-ability...
eszyman Posted June 23 Author Posted June 23 (edited) More progress... Starting to get to the meat and potatoes of the workings. I'm thinking flaps are not going to require us to return to neutral after use, so I may do a simplified method where the neutral position is more or less fixed, and the pilot will push in the lever and either raise or lower the handle to actuate up or down a large 'clicky' limit switch, they the found in standard arcade buttons. This is good because on re-spawn the flaps will always be ready and returned to neutral. Also, my plan is to not going to use standard hall effect for the twist grip and throttle instead I'm opting for the AS5600 style sensors (https://a.co/d/09UvIODo) which seem to work better after some setup. Edited June 23 by eszyman
